Handheld Infrared Thermal Imaging Thermometer for Fever Screening
Certificates
Handheld Infrared Thermal Imaging Thermometer for Fever Screening
| Categories | Thermal Systems & Cameras |
|---|---|
| Brand | JAVOLVISION Infrared Camera Cores and Components |
| Model | H160 |
| Target | Multiple targets |
| Brand | Javol Vision |
| Face Recognition | AI Face Recognition |
| Accuracy | ±0.2℃ |
| Temperature Range | +30℃~+45℃ |
| Infrared Channel Pixel | 256×192 |
| Measure Distance | 0.5~5 meters |
| Display | Fever Screening Video |
| IR resolution | 160×120 |
| Detector type | uncooled FPA |
| Size | 245mm×95mm×110mm |
| Weight | ≤0.5kg |
| Unit Price | US $ 1200 / set |
| FOB port | Shanghai Port |
| Terms of Payment | T/T |
| Update Time | Jun 26,2024 |
Detail Information
Product Introduction

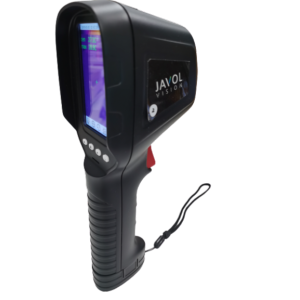

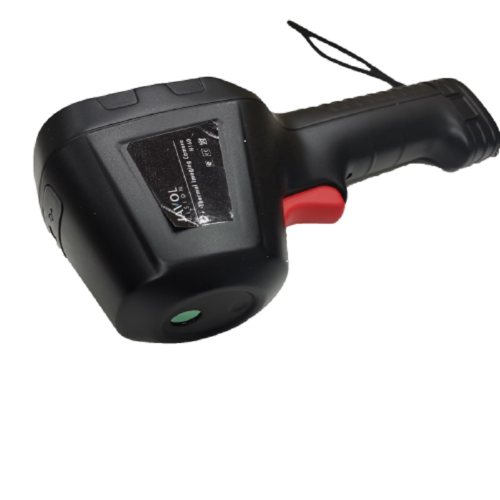

Handheld Infrared Thermal Imaging Thermometer for Fever Screening is a handheld temperature measurement product with thermal imaging images. It supports functions such as temperature measurement, image capture, high temperature alarm and false color settings. It can effectively detect temperature changes and accurately measure the temperature of the target in the environment.
Main Functions
1. Temperature measurement function: monitor the scene temperature in real time, and display the measurement results on the screen.
2. Storage function: By inserting an SD card, local snapshot storage and device upgrades can be realized.
3. Snapshot function: Support manual snapshot and record temperature measurement information.
4. Pseudo-color mode: supports multiple pseudo-color mode selections, displaying different picture effects.
5. High temperature alarm: When the device detects that the human body temperature exceeds the warning value, the device will sound an alarm.the device will sound an alarm.
Product Parameters
|
Display
|
|
|
Image Display
|
3.5inch LCD display,resolution 800×480
|
|
Frame Rate
|
＜25Hz
|
|
Pseudo-color Mode
|
Iron red, white/black hot etc
|
Temperature Measurement | |
FOV | 42°(H), 56°(V) |
Temperature Range | 30℃~45℃ |
Temperature measurement accuracy | ±0.5℃ |
Temperature Measurement Distance | 0.3~3m |
High temperature warning | Sound/color |
Temperature measurement correction | automatic / manual |
Cluster intelligent display | support |
Distance compensation | support |
Background temperature correction | automatic |
Atmospheric transmittance correction | automatic |
Storage | |
SD Card | support |
Number of image storage | 4G/8G/32G SD card |
power supply | |
Power supply | USB TYPE C, DC 5V, 2A |
Type of battery | 18650 X2 |
