Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256

Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256

Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256
Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256Handheld Infrared Thermal Imaging Camera for Industrial Temperature Measurement H256
CategoriesThermal Systems & Cameras
BrandJAVOLVISION Infrared Camera Cores and Components
ModelH256
TargetMultiple targets
BrandJavol Vision
Face RecognitionAI Face Recognition
Accuracy±2%
Infrared Channel Pixel256×192
Detector typeuncooled FPA
Size245mm×95mm×110mm
Weight≤0.5kg
FOB portShanghai Port
Terms of PaymentT/T
Update TimeJun 26,2024
Detail Information
Product Introduction

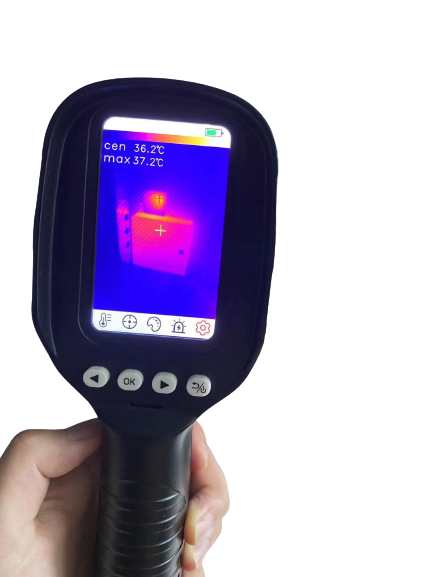

      H256 handheld infrared thermal imaging camera adopts 256×192 IR detector, which is a thermal imaging product based on the principle of thermal imaging. It has functions of AI facial recognition, clear imaging, long battery life, multiple alarms and others. It can effectively detect temperature changes and accurately detect high-temperature targets in the environment to help personnel troubleshoot faults, assist decision-making, and ensure safety. H256 handheld infrared thermal imaging camera can help you visualize the hot and cold spots that can indicate electrical faults,mechanical break-downs, air and water leaks, etc
Main Functions
1. Real-time monitoring of the scene temperature, and display the measurement results on the screen;
2. High sensitivity detector;
3. Support manual capture and record temperature measurement information;
4. Support a variety of false color mode selection, display different picture effects
5. By inserting an SD card, local snapshot storage and equipment upgrades can be realized;
6. Highest and low temperature cross positioning;
7. Lightweight and portable, suitable for mobile inspection, and can also be equipped with a tripod.
Applications
a. Water Leak detection;
b. Human-body temperature measurement;
c. Visualize the hot and cold spots that can
indicate electrical faults;
d. Petroleum and petrochemical;
e. Industrial temperature measurement;
f. Anti-pinhole sneak shots.
Product Parameters
Display
Image Display
3.5inch LCD display,resolution 800×480
Frame Rate
<25Hz
Pseudo-color Mode
six kinds of iron red, white/black hot,etc
Temperature Measurement
FOV
42°(H), 56°(V)
Temperature Range
Industrial:-15℃~150℃(high gain);0℃~550℃(low gain)
Biological:30℃~45℃
Temperature measurement accuracy
±2%/±2% of reading(take the maximum value)
Temperature Measurement Distance
0.3~3m
High temperature warning
Sound/color
Temperature measurement correction
automatic / manual
Cluster intelligent display
support
Distance compensation
support
Background temperature correction
automatic
Atmospheric transmittance correction
automatic
Storage
SD Card
support
Number of image storage
4G/8G/32G SD card
power supply
Power supply
USB TYPE C, DC 5V, 2A
Type of battery
18650 X2
Detector
Type
uncooled FPA
Resolution
256×192
Pixel pitch
12μm
NTED
≤50mk
Environment Parameters
Operating Temperature
15℃~35℃
Storage Temperature
-20℃~70℃
Humidity
≤95%(no condensation)
Mechanical Parameters
Size
247mm×84mm×80.5mm
Weight
≤0.45kg
