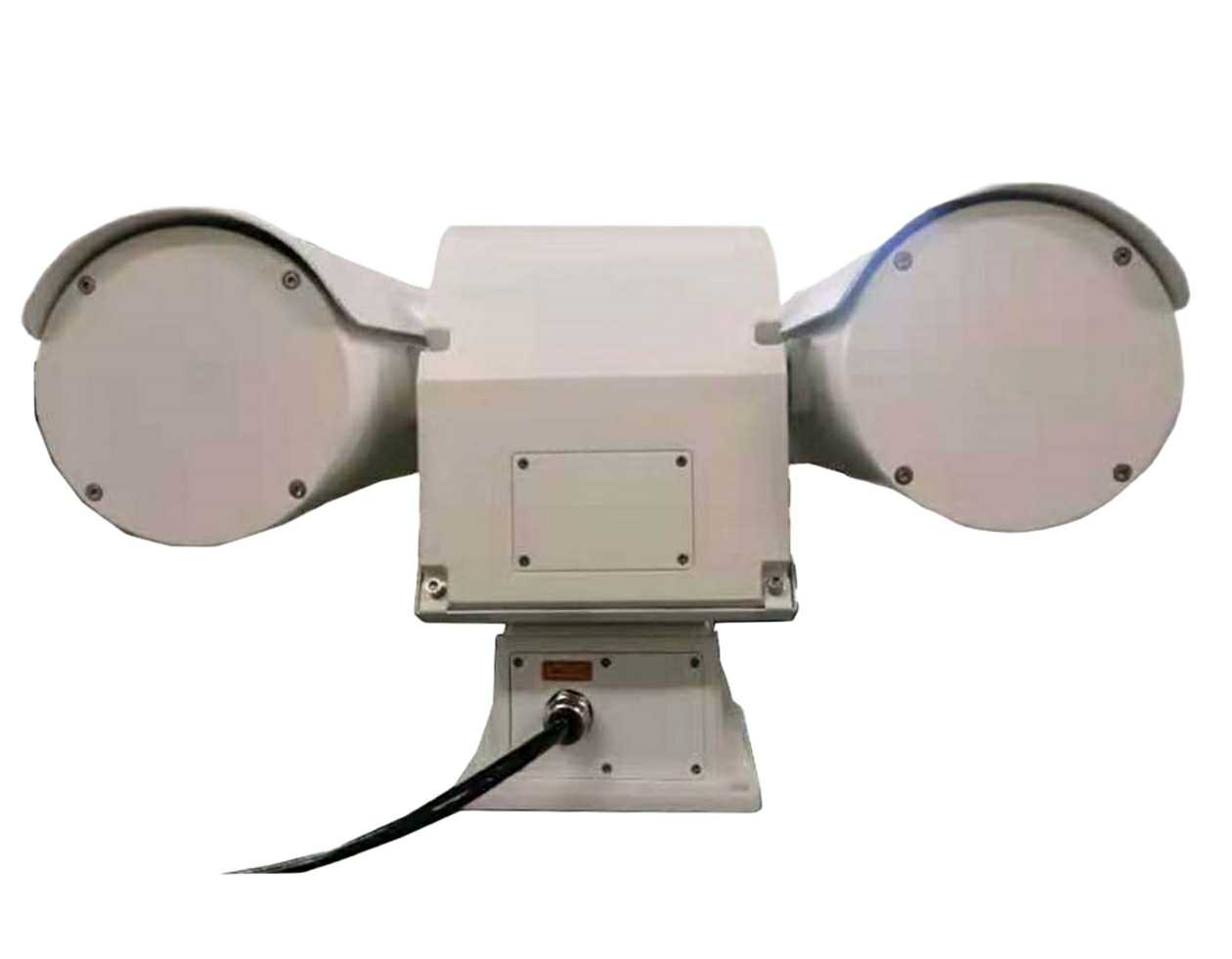

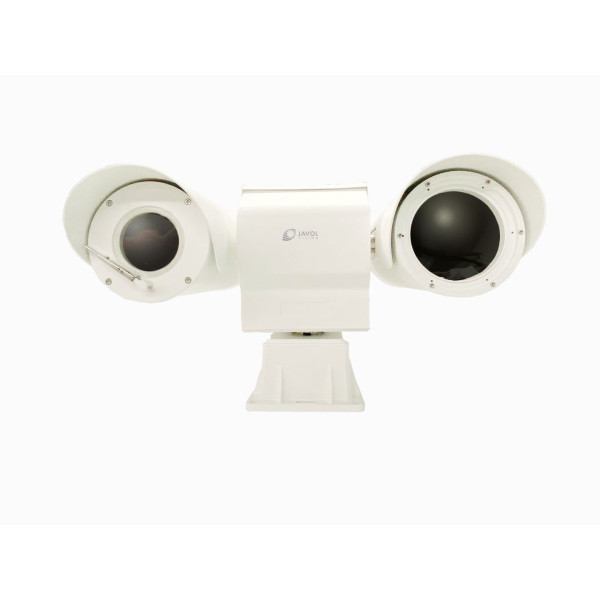

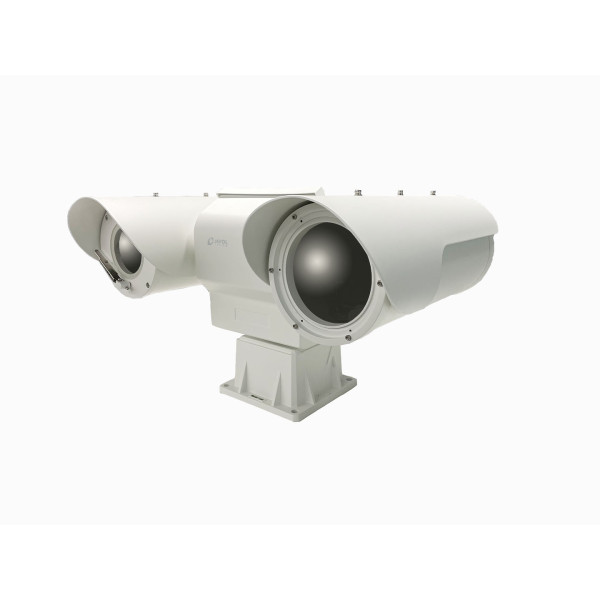

Dual-spectrum Thermal Imaging camera System PTD 300

Dual-spectrum Thermal Imaging camera System PTD 300

Dual-spectrum Thermal Imaging camera System PTD 300
Dual-spectrum Thermal Imaging camera System PTD 300Dual-spectrum Thermal Imaging camera System PTD 300Dual-spectrum Thermal Imaging camera System PTD 300
CategoriesThermal Systems & Cameras
BrandJAVOLVISION Infrared Camera Cores and Components
ModelPTD 300
BrandJavol Vision
SensorUncooled amorphous silicon FPA
Resolution/Pixel pitch384×288/640×480, 17µm
Sensitivity≤50mk
Frame rate25Hz
Spectral range8~14µm
Humidity≤90%RH
Size(L×W×H)521mm×380mm×316mm
Weight<25Kg
FOB portShanghai port or other ports customer requirements
Terms of PaymentT/T
Update TimeJun 26,2024
Detail Information

    Dual-spectrum thermal imaging camera system is a thermal imaging camera system which built in high sensitivity infrared thermal imaging camera with large aperture lens, and ultra-low illumination integrated HD IPC, all have been carried over a 360° medium-size omnidirectional PTZ platform; supports medium and long range fast search and monitoring. The features of Dual-spectrum Thermal Imaging Camera Security System are as follows:

1. Powerful embedded intelligent analysis algorithm makes motion detection, region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions done in the device.

2.Leading thermal imaging procession algorithm: IDE(image details enhancement algorithm), HDR (high dynamic range algorithm: sea-sky mode, sky-earth mode) .

Embedded high temperature alarm module, it can accurately pre-alarm the fire source in time based on the leading temperature alarming algorithm, the pre-alarming grades are adjustable,

applicable for the need of fire pre-alarming in different scenes .

3.Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc.)

4.Powered by complete functions and interfaces; standardized security interface design; ONVIF compliant, easily access to the platform.

5.Impressive appearance, integrated structural design, easy for installation and maintenance.

Applications

Applicable in large-scale scenarios, such as: smart city, high-spot watching, mobile& traffic, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, scenic sights and etc

Product Specifications

Detector Specifications

Detector

Uncooled amorphous silicon FPA

Array format / Pixel pitch

384×288/640×480, 17µm

Sensitivity

≤50mk

Frame rate

25Hz

Spectral range

8~14µm

Focal length

Standard:100mm,Optical

Focus

Electromotion focus

Digital zoom

1-8×continuous

Thermal images process algorithm

IDE,HDR

Thermal images Smart function*

Motion detection,Instrusion, Moving path, Target enhancement

High-temperature alarm

High-temperature tracking ,Over-temperature alarm

Visible Specifications

Matrix type

1/1.9 inch CMOS

Effective pixels

1920(H)×1080V

Focal length

6-300mm 50x

FOV

56°~1.8°(wide end -tele end)

F-number

F1.4~F1.5

Minimum illumination

Color:0.05Lux@(F1.6,AGCON)

Black:0.01Lux@(F1.6,AGCON)

Video compression

H.264/MJPEG

Video output bit rate

32Kbps~16Mbps

Video preview

Support preview by IE explorer,PC client

Camera technical specifications

Pan/Tilt speed

Pan:60°/s, Tilt:30°/s

Pan/Tilt Range

Pan:360°continuous,Tilt:90°-45°~+45°

Focus length speed

Automatic adjustment based on the different focal length

Programmable preset

200

Scan and patrol

Preset patrol/ Auto Line scanning & etc

PTZ Watching

1 preset point/auto patrol line/auto scanning line

PTZ Angle function

function Angle control and angle value return

Interface

Video output interface

Ethernet & Female BNC

Network interface

RS485/ RS422 (optional)

Platform compatibitity

ONVIF, GB28181 compliant

Network interface

PELCO-D, PELCO-P,etc

 Environment Adaptability

Operating temperature range

-25℃~+55

Humidity

90%RH
