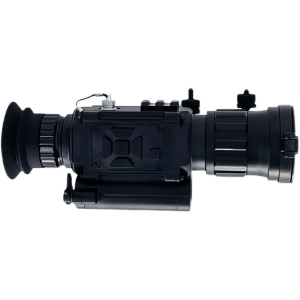

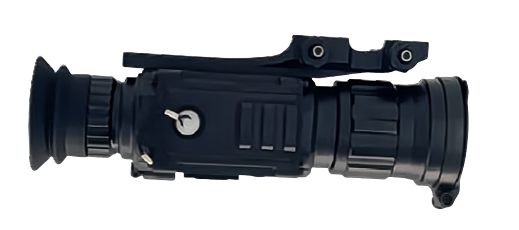

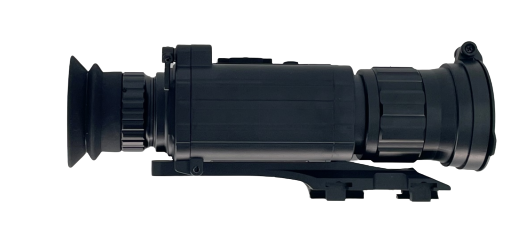

JWA Series Infrared Thermal Imaging Sight

JWA series are compact and lightweight multi-functional thermal weapon sights. With advanced shutter-free technology, it has the features of high sensitivity, high refresh rate and high stability. It can be used in various scenes for 24-hour full-scene imaging investigation and observation, such as reconnaissance and observation, outdoor hunting, outdoor exploration, security and anti-theft, maritime operations, special tasks and other scenes.

Features

Shutter-free Technology

Long Standby Life: ＞8h

Multiple Image Mode

Short Start-up Time

Parameter

Type	JWA-MQ	JWA-MP
Detector
Resolution	384×288	640×480
Sensor Type	uncooled microbolometer detector
Spectrum	8~14μm
Pixels	17μm
NETD	≤50mk
Optical
Focus Length	35~75mm
Focusing	Manual
F#	F1.0
FOV	10.6°×8°（±5%）	17.7°×14.2°（±5%）
Frame Rate	50Hz	25Hz
Display OLED	0.39-inch OLED
Resolution	1024×768
Image Magnification	1-4x electronic magnify
Image schema	Black-hot, White hot, Red hot, Iron hot, Sky, Strok, The edge
Eyepiece	Monocular display, adjustable diopter
Range
Detection Range	Human(1.7m×0.5m）：900m Static Target(2.3m×2.3m）：1200m	Human(1.7m×0.5m）：1500m Static Target(2.3m×2.3m）：1800m
Recognition Range	Human(1.7m×0.5m）：500m Static Target(2.3m×2.3m）：800m	Human(1.7m×0.5m）：800m Static Target(2.3m×2.3m）：1200m
Power
Battery	18650 rechargeable Lithium battery*2
Working Time	≥8h（at room temperature）
Interface
Electrical Interface	Aviation connector
Environment
Operation Temperature	-40℃~60℃
Storage Temperature	-45℃~65℃
Ingress protection	IP 67
Physical Characteristics
Weight	≤700g（With battery））	≤750g（With battery）
Size	225mm×85mm×105mm
