Ultra Low-illumination & Wide Spectrum Camera

Ultra Low-illumination & Wide Spectrum Camera

Ultra Low-illumination & Wide Spectrum Camera
Ultra Low-illumination & Wide Spectrum CameraUltra Low-illumination & Wide Spectrum CameraUltra Low-illumination & Wide Spectrum CameraUltra Low-illumination & Wide Spectrum Camera
CategoriesWide Spectrum Camera
BrandJAVOLVISION Infrared Camera Cores and Components
ModelHWS1280
BrandJAVOL VISION
Resolution1280×1024,10 μm pitch
Frame Rate25fps / frame rate can be adjusted
Enhanced Fog PenetrationSupport
Power Consumption≤ 2.5W
Operating Temperature-20℃~+45℃
Size51mm×51mm×85.7mm
Weight≤300g
White balanceAutomatic/manual/indoor/outdoor
FOB portShanghai Port or other port customer asked
Terms of PaymentT/T
Update TimeJun 26,2024
Detail Information
Product Introduction

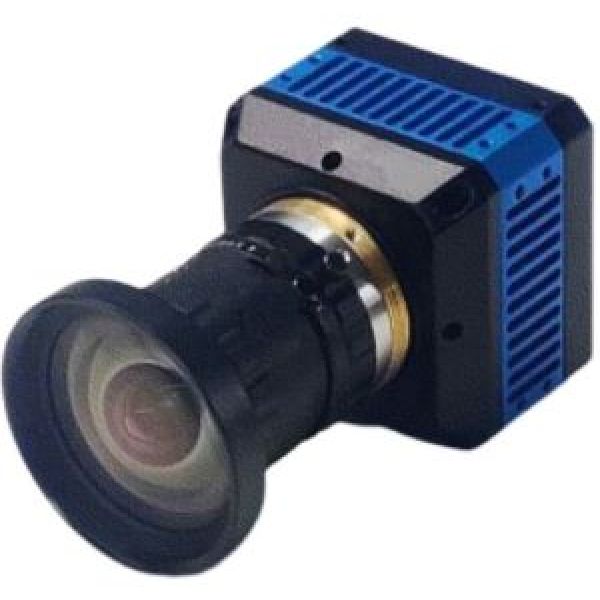

HWS 1280 Ultra Low-illumination & Wide Spectrum Camera adopts the high sensitivity sensor to provide excellent low-illumination capacity and biometric recognition performance. Up to 10 times the sensitivity enhancement of today's ordinary CMOS sensors, high-definition digital output, 120dB wide dynamic range (HDR mode). Advanced low-light imaging technology, high sensitivity, excellent fog-penetration ability,which can be widely used in application of low-illumination imaging, machine vision, iris recognition, fluorescence imaging, inspection of wafer and solar cells, smart mine and etc.

                                                Starlight camera imaging

                                          HWS1280 wide spectrum imaging

Applications
1. Machine vision 2. Fluorescence imaging
3. Wafer inspection
4.Smart mine
Product Specification
Functions
3A
With auto exposure control, auto gain control, auto white balance
Video
 Record up to 4 hours of video
Photograph
10,000 pictures can be taken
Fog Penetration
Support
Supplement Light
Support
BLC
Support
Sensor
Type
Silicon-based high-sensitivity wide-spectrum image sensor
Resolution

1280×1024

Pixel
10μm × 10μm
Frame Rate
30Hz
HDR
120dB(20fps 720p)
Integration time
20us ~33ms
Quantum efficiency
Max QE>80%@0.7μm
Minimum illumination
Color 0.002lx@ (F1.4)
Black and white 0.0002lx@ (F1.4)
Interface
Video interface
RJ45 100M
Optical interface
 C-mount
Communication Interface
H.264/H.265
Power
12V
Video Protocol
Onvif
Mechanical specifications
Size(mm3)
51×51×85.7mm3
Weight(g)
≤300g
Environmental Adaptability
Operating Temperature
-20℃ ~ 45℃
Storage Temperature
-40℃ ~70℃
IP
TVS 6000V lightning protection, anti-surge, anti-surge
Humidity
95% RH
