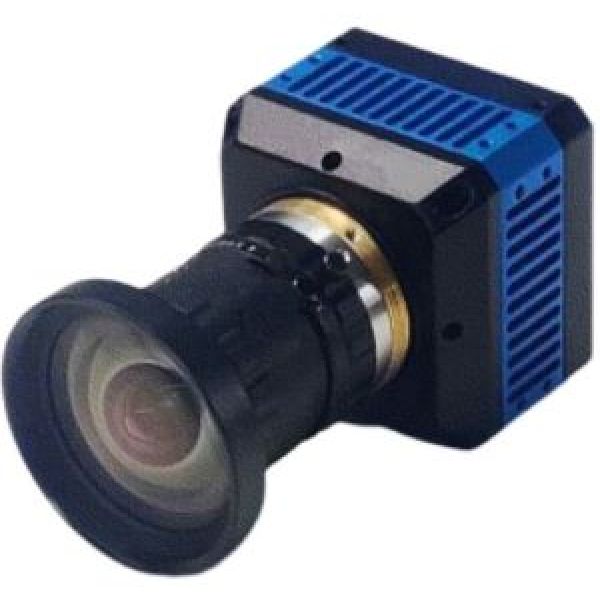

Ultra Low-illumination & Wide Spectrum Camera
Ultra Low-illumination & Wide Spectrum Camera
| Categories | Wide Spectrum Camera |
|---|---|
| Brand | JAVOLVISION Infrared Camera Cores and Components |
| Model | HWS1280 |
| Brand | JAVOL VISION |
| Resolution | 1280×1024，10 μm pitch |
| Frame Rate | 25fps / frame rate can be adjusted |
| Enhanced Fog Penetration | Support |
| Power Consumption | ≤ 2.5W |
| Operating Temperature | -20℃~+45℃ |
| Size | 51mm×51mm×85.7mm |
| Weight | ≤300g |
| White balance | Automatic/manual/indoor/outdoor |
| FOB port | Shanghai Port or other port customer asked |
| Terms of Payment | T/T |
| Update Time | Jun 26,2024 |
Detail Information
Product Introduction
HWS 1280 Ultra Low-illumination & Wide Spectrum Camera adopts the high sensitivity sensor to provide excellent low-illumination capacity and biometric recognition performance. Up to 10 times the sensitivity enhancement of today's ordinary CMOS sensors, high-definition digital output, 120dB wide dynamic range (HDR mode). Advanced low-light imaging technology, high sensitivity, excellent fog-penetration ability，which can be widely used in application of low-illumination imaging, machine vision, iris recognition, fluorescence imaging, inspection of wafer and solar cells, smart mine and etc.
Starlight camera imaging
HWS1280 wide spectrum imaging
Applications
1. Machine vision
2. Fluorescence imaging
3. Wafer inspection
4.Smart mine
Product Specification
|
Functions
|
|
|
3A
|
With auto exposure control, auto gain control, auto white balance
|
|
Video
|
Record up to 4 hours of video
|
|
Photograph
|
10,000 pictures can be taken
|
Fog Penetration | Support |
Supplement Light | Support |
BLC | Support |
Sensor | |
Type | Silicon-based high-sensitivity wide-spectrum image sensor |
Resolution | 1280×1024 |
Pixel | 10μm × 10μm |
Frame Rate | 30Hz |
HDR | 120dB(20fps 720p） |
Integration time | 20us ~33ms |
Quantum efficiency | Max QE＞80%@0.7μm |
Minimum illumination | Color 0.002lx@ (F1.4) Black and white 0.0002lx@ (F1.4) |
Interface | |
Video interface | RJ45 100M |
Optical interface | C-mount |
Communication Interface | H.264/H.265 |
Power | 12V |
Video Protocol | Onvif |
Mechanical specifications | |
Size(mm3) | 51×51×85.7mm3 |
Weight(g) | ≤300g |
Environmental Adaptability | |
Operating Temperature | -20℃ ~ 45℃ |
Storage Temperature | -40℃ ~70℃ |
IP | TVS 6000V lightning protection, anti-surge, anti-surge |
Humidity | 95% RH |
