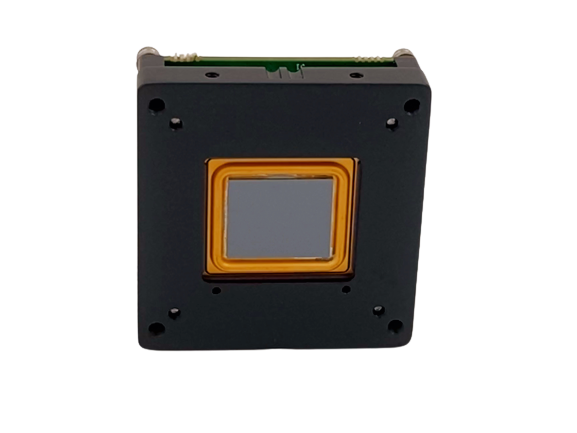

LWIR Shutterless Thermal Imaging Core LWIR 384

LWIR Shutterless Thermal Imaging Core LWIR 384

LWIR Shutterless Thermal Imaging Core LWIR  384
LWIR Shutterless Thermal Imaging Core LWIR  384LWIR Shutterless Thermal Imaging Core LWIR  384LWIR Shutterless Thermal Imaging Core LWIR  384
CategoriesLWIR Cameras and Cores
BrandJAVOLVISION Infrared Camera Cores and Components
ModelLWIR 384
BrandJavol Vision
Resolution384×288
Pixel Pitch17μm
Video OutputCCIR / PAL composite video (50 Hz), 100 MB Etherne
Power Consumption<0.7W
NETD<50mk@300K,f1.0
Operating Temperature Range-40℃~+60℃
FOB portShanghai Port or other ports customer requirement
Terms of PaymentT/T
Update TimeJun 26,2024
Detail Information
Product Description
LWIR 384 shutterless thermal imaging core is empowered by our cutting-edge “Pixel-by-Pixel real-time high precision radiation non-uniformity calibration” technology, which is not only competent with the real-time sensor frequency response variation, but also adjusting the signal deviation, originated from camera self-generated heat radiation and sensor dark current changing.Compared with traditional algorithm of calibration, the new method is characterized by its advanced reliability and precision of the image. In this way the users are not required to introduce a 2nd time calibration at long-term deployment, therefore the user will be enjoyed by easier after-sale maintenance works.

Realtime video: 50/25Hz video frequency, no image freezing by shutterless technology.

Feature

1. Real-time image noise reduction function to achieve image background noise reduction.

2. Contrast/Brightness adjustment

3. Imaging zoom function is 2 times and 4 times respectively

4. Polarity display of black /white hot

5. Standard PAL two video output and 16-bit digital interface

6). Standard RS232 Serial Interface

7. Function of cursor display

Product Specification Briefly

Detector

Sensor

Uncooled FPA

Resolution

384×288

Pixel Pitch

17μm

NTED
≤50mk@300K. F1.0

Spectral Range

8~14μm

Video Display Processing

Non-uniformity Calibration

Shutterless

E-zoom

×2×4Optional continuous zoom

Starting time

<5s

Pallets

White/Black hot, brown, red hot, iron, rainbow

Brighness
Manual/Auto
Contrast
Manual/Auto

Opiticals

Lens

Standard: 13mm

Optional: 7mm, 10mm,9mm25mm35mm50mm75mm

Interfaces
Communication
RS232

Analog Video-out

one channel video

Digital Video-out

16 bits(50Hz)

GPIO

Support
Electrical
Voltage
DC +3V~5.5V
Power Consumption
<0.7W
Inverse Voltage Protection
Support
Over/Low Voltage Protection
Support

Environmental Parameters

Operating Temperature Range

-40℃~+60℃

Storage Temperature Range

-45℃~+65℃

Humidity
<95%RH
Mechanical Parameters
Weight(no lens)
≤40g(no lens and back cover)
Size(mm)
≤42.5×41×20mm3(no lens and back cover)
