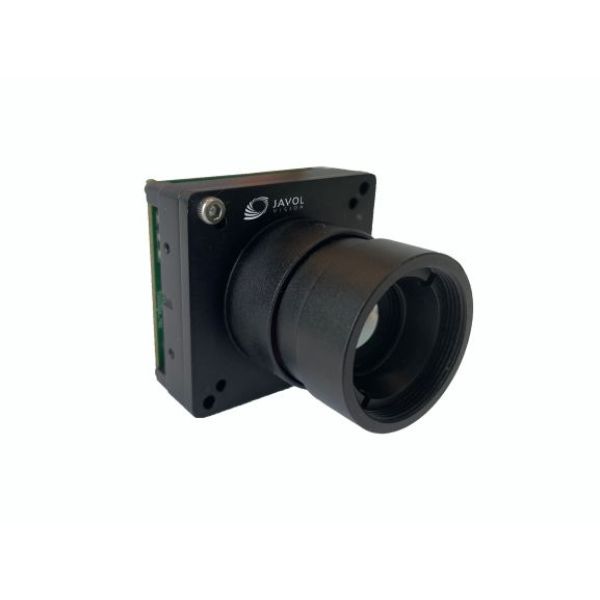

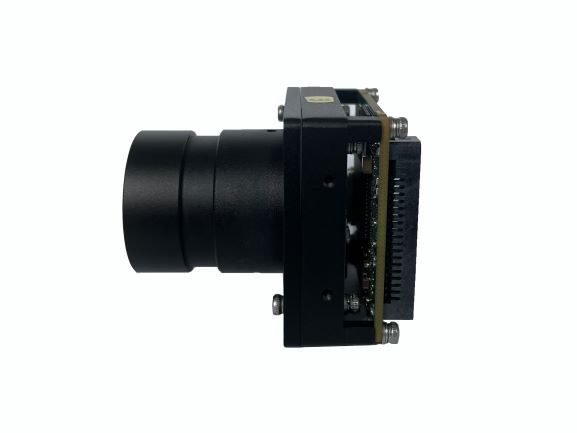

Uncooled FPA Thermal Imaging Core- LWIR 384

Uncooled FPA Thermal Imaging Core- LWIR 384

Uncooled FPA Thermal Imaging Core- LWIR  384
Uncooled FPA Thermal Imaging Core- LWIR  384Uncooled FPA Thermal Imaging Core- LWIR  384Uncooled FPA Thermal Imaging Core- LWIR  384
CategoríaLWIR Cameras and Cores
MarcaJAVOLVISION Infrared Camera Cores and Components
ModeloLWIR 384
BrandJavol Vision
Resolution384×288
Pixel Pitch12μm
Video OutputCCIR / PAL composite video (50 Hz), 100 MB Etherne
Power Consumption<2.5W
NETD<40mk@300K,f1.0
Operating Temperature Range0℃~+30℃;
PuertoShanghai Port or other ports customer requirement
forma de pagoT/T
Tiempo de Actualización2024/6/26
Información Detallada
Product Description
LWIR 384 thermal imaging core is a uncooled focal plane infrared thermal imaging camera, which adopts NST operating mode (no shutdown technology) and no TEC to realize the performance of low power consumption, high sensitivity and high reliability. The compact design makes it perfectly suitable for OEM assembly and system integration. It is an ideal application that requires a light, small, low-power, low-cost thermal imaging camera.
Features
1. Real-time image noise reduction function to achieve image background noise reduction;
2. Contrast/Brightness adjustment
3. Imaging zoom function is 2 times and 4 times respectively
4. Polarity display of black /white hot
5. Standard PAL two video output and 16-bit digital interface
6).Standard RS232 Serial Interface
7. Function of cursor display
Product Specification

Detector

Sensor

LWIR Uncooled FPA

Resolution

384×288

Pixel Pitch

12μm

Frame Rate

50Hz

Spectral Range

8~14μm

Video Display Processing

Non-uniformity Calibration

Shutter

E-zoom

×2×4Optional continuous zoom

Starting time

<5s

Lens

Focal Length

75mm

FOV

3.5°× 2.6°

Environmental Parameter

Operating Temperature Range

-40℃~+60℃

Storage Temperature Range

-45℃~+65℃
